Multimode fiber cable is a little more complex than singlemode fiber cable since it includes four different types of OM1, OM2, OM3, OM4 OM1 and OM2 fiber patch cable can support the data rate up.

Multimode singlemode. Single Mode SFP vs MultiMode SFP What Is The Difference Between a Singlemode SFP and Multimode SFP?. The main difference between singlemode and multimode optical fiber is the size of the core Single mode fiber has a core that measures around 5um while the multimode fiber core measures 50um or more Because multimode fiber is thicker, it can accommodate more signals for greater bandwidth. Kabel single mode adalah berdiri tunggal (sebagian besar aplikasi menggunakan 2 serat) dari serat kaca dengan diameter sebesar 8,3 sampai 10 mikron yang memiliki satu cara penularan Serat mode tunggal dengan diameter yang relatif sempit, yang hanya melalui satu modus akan menyebarkan biasanya 1310 atau 1550nm Membawa bandwidth yang lebih tinggi dari serat multimode, tetapi membutuhkan sumber.

Multimode Fiber Optic Cables Multimode fiber optic cables have thicker core diameters (typically 50µm) than singlemode cables These thicker fibers allow the cable to carry light of various modes at 850 to 1300nm wavelengths. The single mode and multimode photon is correspond to different the Feynman diagram Cite All Answers (5) 18th May, 15 Clifford Chafin North Carolina State University. Dimensions of single mode/multimode fiber In single mode optic fiber cable, coretocladding diameter is about 9 microns by 125 microns In multi mode optic fiber cable, coretocladding diameter is about 50 (or 625) microns by 125 microns The figure depicts the fiber optic cable and mentions the core and cladding portions.

Multimode vs singlemode fiber Multimode fiber optic cables have a large diametral core that allows multiple modes of light to propagate, creating the ability for more data to pass through at a given time The 850nm wavelength was established long ago for multimode fiber (MMF) transmission. As we know, single mode and multimode are not interchangeable The main reason is the wavelength of the laser and core size of the fiber However, take Cisco SFP for example, there is a type of the GBIC SFP module (part number “ SFPGEL ” or “ GLCLHSM “) which can support both single mode and multimode fiber. What Is The Difference Between a Singlemode SFP and Multimode SFP?.

Today my topic is fiberoptic cable Specifically, I will talk about the structure of fiber cable, single mode fiber, multimode fiber, and their major differ. Planet Technology’s Industrial Media Converters support both multimode and singlemode fiber to help build flexible deployments The IGTP802T is an Industrial 10/100/1000BASET 8023at PoE Media Converter (SC, MM) at a distance of 550m The multimode model supports SC fiber types and can achieve a distance of 2m and 550m. The dependency on lasers means that singlemode cables are less versatile and more limited in their applications;.

The Singlemode SFP and Multimode SFP mean the SFP transceivers will work on different types of optical fibers;. However, a multimode fiber introduces multimode distortion, which often limits the bandwidth and length of the link Furthermore, because of its higher dopant content, multimode fibers are usually expensive and exhibit higher attenuation The core of a singlemode fiber is smaller (. Multimode fiber cable is a little more complex than singlemode fiber cable since it includes four different types of OM1, OM2, OM3, OM4 OM1 and OM2 fiber patch cable can support the data rate up.

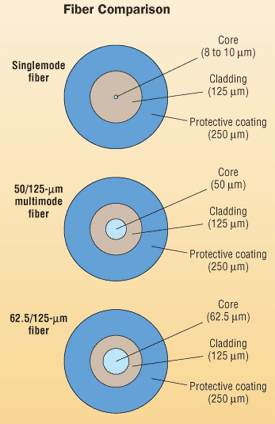

Singlemode VS Multimode Fiber Optics Put simply, the main difference between SM and MM fiber optic cables is the size of the core Multimode fiber is thicker and measures in the 50 to 100micron range The thinner single mode fiber core has a diameter of only about to 10 microns. Multimode fiber is available in two sizes, 625 or 50 microns, and four classifications OM1 (625/125 µm), OM2, OM3, OM4 (50/125 µm) The diameter of a single mode core is 9µm Both fiber types have a cladding diameter of 125 µm or microns. Most people think singlemode and multimode fibers are not interchangable because of the wave length of the laser and core size of the fiber Singlemode fiber (MMF) uses a laser as a light source.

And what should we notice when using them?. ความแตกต่างระหว่าง Fiber SingleMode vs MultiMode อันดับแรกคือ Core Diameter Single mode จะมีขนาด Core (แกนกลางที่ใช้ส่งสัญญาณแสง) คือ 9/125 µm (OS1, OS2). Fiber optic cables (being they multimode or single mode, depending on the communication requirements) provide a safe environment for an effective transmission of data But if the distance is a factor that must be taken into account, a fiber mode conversion from multimode to single mode (MMF to SMF) is required So, what is there to know and do?.

Multimode fiber is available in two sizes, 625 or 50 microns, and four classifications OM1 (625/125 µm), OM2, OM3, OM4 (50/125 µm) The diameter of a single mode core is 9µm Both fiber types have a cladding diameter of 125 µm or microns. As in a Singlemode SFP will work with Singlemode fiber only, and a Multimode SFP will work with Multimode fiber only So, what’s the different between them?. Multimode To Single Mode Converters Five different specialized mode converters combine to offer the most advanced and comprehensive product line available Mode conversions provide several key network benefits including crossconnecting different fiber types, regenerating optical signals, extending transmission distances and doubling fiber.

SMF is 9 µm and multimode fiber is 625 or 50 µm If users try to mix the singlemode and multimode cabling in the same network, they might have trouble in dealing with the two different types of signal However, it is possible to interconnect two devices using SMF interfaces at one end and MMF receiver at the other end. However, a multimode fiber introduces multimode distortion, which often limits the bandwidth and length of the link Furthermore, because of its higher dopant content, multimode fibers are usually expensive and exhibit higher attenuation The core of a singlemode fiber is smaller (. Singlemode lasers are required to generate a narrow spectral width These are significantly more expensive than their lower spec multimode counterparts Multimode Multimode fiber is used primarily for short distance, narrowband applications such as Ethernet and cable TV Multimode fiber has a larger diameter core, typically 50 or 625um.

The narrower wavelengths are used in singlemode SFPs Larger wavelengths, including the VCSELs, are around 850nm and used in multimode SFPs Singlemode SFP vs multimode SFP Bandwidth Multimode SFP uses wider wavelengths that have high dispersion rates So, it cannot be used for long distances. Re How to identify the SFP whether single mode and multi mo SR will be multimode and LR will be singlemode Here is a FAQ KB article that may provide you with some useful information. To convert Single Mode to Multimode, or extend a Multimode network, Fiber to Fiber Media Converters are the devices to useThey are the ideal solution to connect different fiber types, distances and wavelengths (WDM, CWDM & DWDM) across a variety of topologies and network architectures for longer data transmission distances.

Single mode fiber provides users with a greater transmission rate in addition to nearly 50 times longer distance as opposed to multimode fiber In this regard, single mode fibers will require single mode transmitters which use solidstate laser diodes The cost of this transmitter equipment may be 5 or 6 times more than that of multimode equipment. Left Single Mode fiber is usually 9/125 in construction This means that the core to cladding diameter ratio is 9 microns to 125 microns Multimode Fiber Optic Cable Multimode fiber optic cable has a large diametral core that allows multiple modes of light to propagate. Multimode optical fiber is the most common media choice for both backbone and horizontal distribution within the local area network (LAN) including campuses, buildings, and data centers Let's take a closer look at the types of multimode fiber options based on bandwidth and distance needs 1 GB/S NETWORKS.

Abstract This paper presents an investigation on a singlemodemultimodesinglemode fiber structure A oneway guidedmode propagation analysis for the circular symmetry waveguide is employed to model the light propagation and the approximated formulations are derived and evaluated concerning the accuracy. As in a Singlemode SFP will work with Singlemode fiber only, and a Multimode SFP will work with Multimode fiber only. The transmission can be done by multimode fiber or singlemode fiber depending on the communication requirements Fiber mode conversion, especially multimode to singlemode fiber conversion (MMFtoSMF conversion) is required when the distance is an important parameter to consider in optical applications.

The multimode fiber is prefixed with “OM” and the singlemode mode “OS” The new designation in ANSI/TIA56D should alleviate some of the confusion associated with application support distance issues Each “OM” has a minimum Modal Bandwidth (MBW) requirement. Multimode to singlemode fiber media converters provide an efficient solution for converting your 100Base and 1000Base multimode networks to singlemode networks and vice versa These robust and featurerich products are designed to be used across a variety of topologies and network architectures for shorter data transmission distances. Singlemode vs Multimode Fiber Application Differences Because multiple modes/light paths travel down a multimode fiber cable, it only offers high bandwidth over a short distance When run over longer distances, modal dispersion (distortion) becomes an issue.

The singlemode and multimode QSFP here mean the transceivers which work at different types of optical fibers, ie singlemode type will work with singlemode fiber, while multimode one will work with multimode fiber. The dependency on lasers means that singlemode cables are less versatile and more limited in their applications;. Single Mode vs Multimode Fiber The Core of the Matter First and foremost, the core of all fiber cables carries light to transmit data The main difference between singlemode and multimode fiber patch cables is the size of their respective cores Singlemode cables have a core of 8 to 10 microns.

Unlike multimode, singlemode doesn’t have different light paths that reflect light off the cladding but instead has a single light beam With no light reflection, there is less dispersion and therefore light signals can be transmitted over longer distances Characteristics of SingleMode Small core diameter, 8 to 12 microns. Multimode & Singlemode Fibers Multimode & Singlemode fiber are the two types of fiber in common use Both fibers are 125 microns in outside diameter a micron is one onemillionth of a meter and 125 microns is 0005 inches a bit larger than the typical human hair Multimode fiber has light traveling in the core in many rays, called modes. Mode conversion between multimode and singlemode fibers often requires fiber to fiber media converters or the singlemode to multimode fiber converter In the above figure, two Ethernet switches equipped with multimode fiber ports are connected using a pair of fibertofiber converters which convert the multimode fiber into singlemode and.

Dimensions of single mode/multimode fiber In single mode optic fiber cable, coretocladding diameter is about 9 microns by 125 microns In multi mode optic fiber cable, coretocladding diameter is about 50 (or 625) microns by 125 microns The figure depicts the fiber optic cable and mentions the core and cladding portions. The equipment used for communications over multimode optical fiber is less expensive than that for singlemode optical fiber Typical transmission speed and distance limits are 100 Mbit/s for distances up to 2 km (100BASEFX), 1 Gbit/s up to 1000 m, and 10 Gbit/s up to 550 m. Single mode fiber provides users with a greater transmission rate in addition to nearly 50 times longer distance as opposed to multimode fiber In this regard, single mode fibers will require single mode transmitters which use solidstate laser diodes The cost of this transmitter equipment may be 5 or 6 times more than that of multimode equipment.

Multimode was favored over singlemode because it met the 2 km distance objective and had the advantage of lower cost transceivers At that time, the commercially available multimode fiber types were 50/125, 625/125, 85/125, and 100/140 micron 50/125 micron fiber continues to be popular in Japan and Europe and is supported in the ISO/IEC. As we know, single mode and multimode are not interchangeable The main reason is the wavelength of the laser and core size of the fiber However, take Cisco SFP for example, there is a type of the GBIC SFP module (part number “ SFPGEL ” or “ GLCLHSM “) which can support both single mode and multimode fiber. And multimode fiber core diameter is 50 µm and 625 µm typically, which enables it to have higher "light gathering" ability and simplify connections The cladding diameter of single mode and multimode fiber is 125 µm The attenuation of multimode fiber is higher than SM fiber because of its larger core diameter.

Multimode bandwidth is smaller than singlemode—up to 1 GHz vs 100,000 GHz—but still enough transmit a large amount of A/V signal, data, or controls Live production rental/sales houses, and broadcast houses usually standardize on devices that use either singlemode or multimode cable. The multimode model supports SC fiber types and can achieve a distance of 2m and 550m Additionally, the singlemode version of this media converter IGTP802TS supports the same SC fiber type, but because it supports singlemode fiber, it can achieve x the distance of the multimode version for a total distance of up to 10km. Fiber Optic Attenuator FC APC 15dB Singlemode $1600 Fiber Optic Attenuator FC APC 7dB Singlemode $1600 Fiber Optic Attenuator FC APC 5dB Singlemode $1600 Fiber Optic Attenuator FC APC 3dB Singlemode $1600 Fiber Optic Attenuator ST 25dB Singlemode $1925 Fiber Optic Attenuator ST dB Singlemode.

Fiber mode conversion, especially multimode to singlemode fiber conversion (MMFtoSMF conversion) is required when the distance is an important parameter to consider in optical applications In this tutorial, three methods will be introduced to support mode conversion from multimode to singlemode fibers. Multimode fiber has two types of light propagation—step index and graded index, while single mode fiber has only one step index And the light propagation reduces less in the single mode fibers transmission than that of multimode fibers. The mode conditioning cables allow customers to successfully run Gigabit Ethernet over our multimode cable using singlemode fiber transceivers, Cisco 1000BASELX/LH SFP is the special type of.

The multimode and singlemode are the types of the optical fiber cable These fiber optics cable variants can be differentiated by the way in which light is transmitted through these fibers The prior difference between multimode and singlemode fiber is that the diameter of core and cladding in multimode fiber lies in the range of 5085 μm. Multimode optical fiber continues to be the more costeffective choice over singlemode optical fiber for shorterreach applications While the actual cost of multimode cable is greater than that of singlemode fiber optic cable, it is the optics that dominate the total cost of a network system, dwarfing variation in cable costs. What is the difference between multimode and singlemode fiber?.

Singlemode fiber (OS2) makes use of a smaller core 9µm and operates at the wavelength between 1260nm1650nm Singlemode transceiver technology can support fast data transmission speed (ie bit rates) and much longer transmission distances Multimode fiber and singlemode fiber Click here to see the fullsized diagram Laser Source. Multimode Fiber Optic Cables Multimode fiber optic cables have thicker core diameters (typically 50µm) than singlemode cables These thicker fibers allow the cable to carry light of various modes at 850 to 1300nm wavelengths. The Singlemode SFP and Multimode SFP mean the SFP transceivers will work on different types of optical fibers;.

Equipment for singlemode fiber is more expensive than equipment for multimode optical fiber, but the singlemode fiber itself is usually cheaper in bulk citation needed Cross section of a singlemode optical fiber patch cord end, taken with a Fiberscope The circle is the cladding, 125 microns in diameter. To convert Single Mode to Multimode, or extend a Multimode network, Fiber to Fiber Media Converters are the devices to useThey are the ideal solution to connect different fiber types, distances and wavelengths (WDM, CWDM & DWDM) across a variety of topologies and network architectures for longer data transmission distances. The single mode gives a higher transmission and up to 50 times more distance than the multimode The core from a single mode cable is smaller than one from a multimode Multimode patch cords have a bigger diameter, typically microns for the light carry component Over medium distances, multimode fibers give high bandwidths at high speeds.

A mode is a ray of light that is transmitted through a fiber optic cable Singlemode fibers have cores of a relatively small diameter compared to the fiber’s cladding and jacket, and allow only one mode of light to propagate. Multimode Multimode patch cords have a bigger diameter, typically microns for the light carry component Over medium distances, multimode fibers give high bandwidths at high speeds Light waves are dispersed into numerous paths, or modes, as they travel through the cable’s core typically 850 or 1300nm.
