Diode Array Detector
How does a diode array spectrophotometer work Diode array is particularly useful for spectrophotometer applications where light scattered by a prism is irradiated onto the array and intensity When a light source emits electromagnetic radiation evenly in this area, the emitted light appears white.

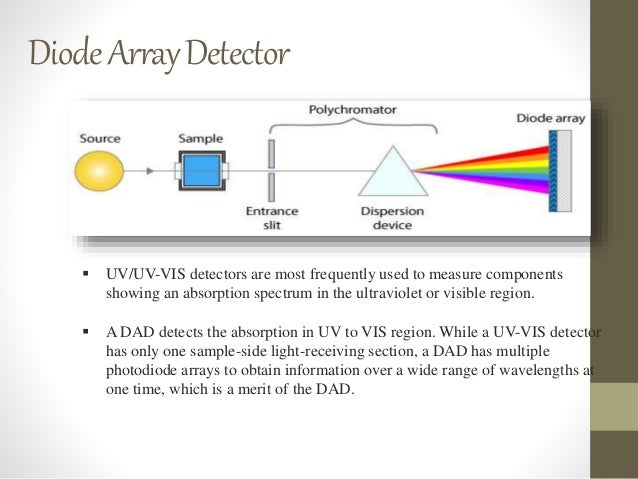

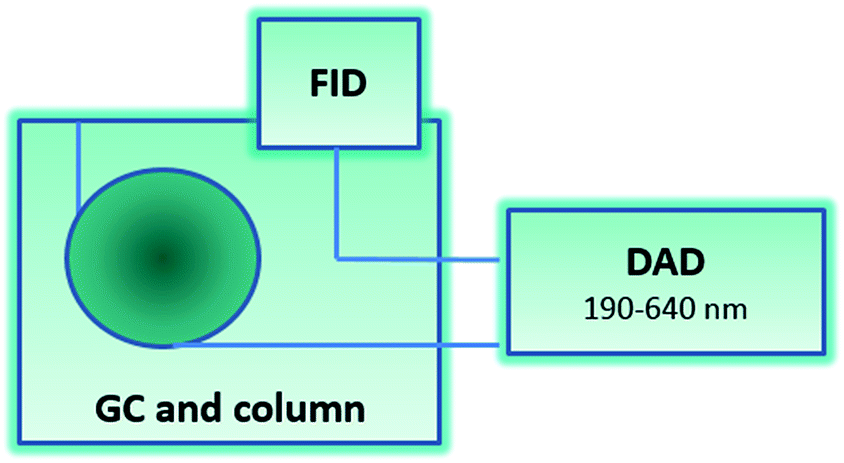

Diode array detector. A photodiode array detector consists of an array or series of adjacent photosensitive diodes (Figure 116) Radiation striking a diode causes a charge buildup that is proportional to the intensity of the radiation The individual members of the array are known as pixels and are quite small in size. It is used to detect different levels of light as they pass through its field of view To obtain a 2d image from and LDA it is necessary to move the object being imaged or move the detector. The L35 Diode Array Detector (DAD) responds to ultraviolet and visible light with wavelengths from 190nm to 640nm The L35 uses a Deuterium light source, condenser and filter, flow cell, monochromator and 1024 Diode Array Detector with high sampling rates to achieve high sensitivity, low noise chromatograph spectrum.
For operation of the Agilent 1100 diode array detector (DAD) with the Agilent 1100 control module 8 Specifications Performance specifications of the detector Annex A Safety Information 4 1100 Series DAD and MWD Reference Manual Contents 1 Installing the Detector Site Requirements 14 Physical Specifications 16 Unpacking the Detector 17. Specifications of commercial diode detectors Diode Type Shape Buildup Material, Total buildup thickness (g/cm 2) Energy Range Manufacturing period Sun Nuclear Isorad Red (ntype) Cylinder 11 mm Tungsten, 28 15–25 MV 1993 1998 Sun Nuclear Isorad Electron. Diodearray detectors As already mentioned, a special feature of some variable wavelength UV detectors is theability to perform spectroscopic scanning and precise absorbance readings at a variety ofwavelengths while the peak is passing though the flowcell Diode array adds a newdimension of analytical capability to liquid chromatography because it permits qualitativeinformation to be obtained beyond simple identification by retention time.
HPLC equipment with variable wavelength ultraviolet detector or diode array detector operating in the range of 250 to 400 nm Équipement pour CLHP avec détecteur d'ultraviolets à longueur d'onde variable ou détecteur à barrettes de diodes fonctionnant dans l'intervalle de nm This was made possible through advances in diode array detector technology, ie one detector is capable of measuring the whole spectrum from 178 to 340 nm. The wavelength selective element in a diode array spectrometer is a diffraction grating And in this case, the detector is an array of photodetectors as illustrated in the picture below The diode array detector will measure all wavelengths simultaneously so, the cost and complexity remain the same whether you want to measure one or 1000 wavelengths. † the Agilent 1290 Infinity Diode Array Detector (G4212A) and † the Agilent 1260 Infinity Diode Array Detector (G4212B) Find information on other Agilent Diode Array Detectors in separate manuals 1 Introduction This chapter gives an introduction to the detector and an instrument overview 2 Site Requirements and Specifications.
To cater to baseline changes or drift during a measurement, the diode array detector uses a reference wavelength The user has to select a specific wavelength as reference, and make sure there is no absorption in the wavelength during the entire chromatography measurement. 1290 Infinity II Diode Array Detector Overview Video 1290 Infinity Diode Array Detector Overview Video 1290 Infinity Diode Array Detector. The L35 Diode Array Detector (DAD) responds to ultraviolet and visible light with wavelengths from 190nm to 640nm The L35 uses a Deuterium light source, condenser and filter, flow cell, monochromator and 1024 Diode Array Detector with high sampling rates to achieve high sensitivity, low noise chromatograph spectrum.
It is used to detect different levels of light as they pass through its field of view To obtain a 2d image from and LDA it is necessary to move the object being imaged or move the detector One has probably observed the movement of the LDA in your copy machine. The linear diode array detector is comprised of individual photo diodes arranged into a line;. Using flexible fiber optic light paths, the 171 and 172 Diode Array Detectors (DAD) deliver accurate UV/Vis and spectrum data with up to seven specific wavelengths simultaneously With an interchangeable flow cell design, these detectors are ideal for analytical, semipreparative, and preparative HPLC applications Versatile Flow Cell Configurations.
Detector optics The detector is an ultraviolet/visible li ght (UV/Vis) spectrop hotometer With a photodiode array of 512 photodiodes and an optical resolution of 12 nm, the detector operates within a range of between 190 and 500 nm The light path through the optics assembly of the detector is shown in the figure below Optics assembly light path. English term or phrase diode array detector Gracias de nuevo Quisiera me ayudaran con la traducción al español de éste termino Frances Urbina (Local time 2328 detector de haz de diodos/de dispositivo de fotodiodos Explanation dos opciones más, Te paso referencias. This study provided a stepbystep procedure to investigate the distribution of 17 amino acids (AAs) in 50 fish, 50 bovine and 54 porcine gelatines using UltraHighPerformance Liquid Chromatography DiodeArray Detector (UHPLC–DAD) with the incorporation of principal component analysis (PCA) Dataset preprocessing step, including outlier removal, analysis of variance (ANOVA), dataset.
Diode arrays having numbers of elements ranging from 128 to 1024 – and even up to 4096 are available This multichannel detector makes an ideal sensor for an entire spectrum in a UVVIS dispersive spectrophotometer With that application in mind, newer arrays have been made with adjacent diodes 256 mm long and spaced 25 µm on centers. A photodiode array is formed with a common cathode (ie, diodes are in parallel) and can be operated as a voltage source (photovoltaic mode at zero bias) or as a current source (photoconductive mode in reverse bias) within its sensitive wavelength range. Dionex PD40 (PD40) Photo Diode Array Detector (PDA / DAD) This PDA is also available as part of a complete Dionex DX500 or DX600 system Hitachi L4500A Diode Array Detector With D600 Interface.
These sensors can be built as an array of pn or pin diodes run at zero bias (voltage output) reverse bias (current output) The material from which a photodiode array is built will determine the obtained spectral response Silicon and GaAs photodiodes (bandgap of ~11 eV and ~147 eV, respectively) are normally used for NIR and visible light, while singlecrystal InGaAs and Ge photodiodes (bandgap of ~075 eV and ~066 eV, respectively) are better for deep infrared applications. Diode Array Detector for auction HewlettPackard G1315A 1100 Series S/n# US Hit# Asset Located at 70 Holton Street Woburn, MA Diode Array Detector Heritage Global Partners, Inc. Diode array is particularly useful for spectrophotometer applications where light scattered by a prism is irradiated onto the array and intensity When a light source emits electromagnetic radiation evenly in this area, the emitted light appears white White light is a composition of many wavelengths of light.
DiodeArray Detection (DAD) or PhotodiodeArray Detection (PDA) is an analytical technique that can be used to determine the purity of an analyte or related impurity peak eluting during an HPLC separation The use of DAD to demonstrate method specificity is allowed by the International Council for Harmonisation (ICH) guideline Q2 (R1). 1260 Infinity II Diode Array Detector HS The 1260 Infinity II Diode Array Detector HS, with a fixed slit design, is based on the Agilent MaxLight Cartridge Cell with optofluidic waveguides, which improve light transmission to near 100% efficiency without sacrificing resolution caused by cell dispersion effects. One additional advantage that stems from the small size of photodiodes is the ability to arrange multiple detectors into an array, known as a photodiode array (PDA) These arrays can take any shape and contain any number of detector elements, but are often arranged in a linear fashion, enabling the detection and encoding of spatial data as well.
The 1260 Infinity II Diode Array Detector WR offers multiple wavelength and full spectral detection up to a 1 Hz sampling rate Maximum flexibility is guaranteed with a wide wavelength range of 190 to 950 nm with duallamp design, as well as the choice of 15 analytical, preparative, and SFC flow cells. This study provided a stepbystep procedure to investigate the distribution of 17 amino acids (AAs) in 50 fish, 50 bovine and 54 porcine gelatines using UltraHighPerformance Liquid Chromatography DiodeArray Detector (UHPLC–DAD) with the incorporation of principal component analysis (PCA) Dataset preprocessing step, including outlier removal, analysis of variance (ANOVA), dataset. Diode Array Spectrometer with Integrated Visible Source and Sample Compartment Cutaway View of Spectrometer Diode Array Spectrometer Jump to Spectrometer Operating Instructions Visible light is electromagnetic radiation ranging in wavelength from about 400 to 750 nm If a light source uniformly emits electromagnetic radiation in this range, the emitted light appears white.

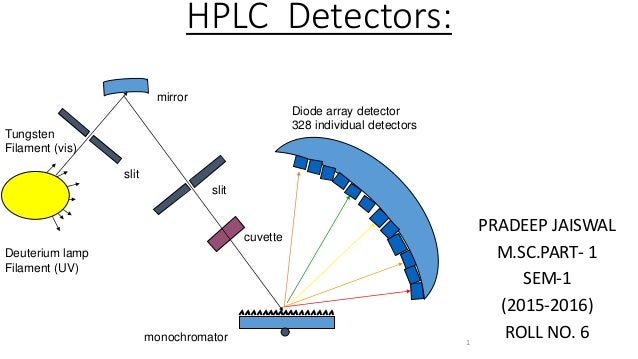

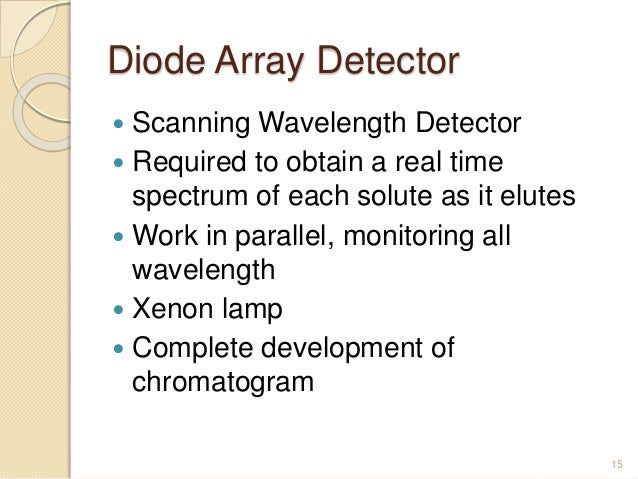

The UVVIS detector Octave 4XE provides simultaneous detection at up to four different wavelengths ranging from 190 nm to 840 nm in a single channel The detector can also be used as Diodearray detector, for reliable, reproducible performance and minimal noise levels Dual deuterium and halogen light sources provide sensitive detection over the wide range of wavelengths. This study provided a stepbystep procedure to investigate the distribution of 17 amino acids (AAs) in 50 fish, 50 bovine and 54 porcine gelatines using UltraHighPerformance Liquid Chromatography DiodeArray Detector (UHPLC–DAD) with the incorporation of principal component analysis (PCA) Dataset preprocessing step, including outlier removal, analysis of variance (ANOVA), dataset. Photo Diode Array Detector operates by simultaneously monitoring absorbance of solutes at several different wavelengths Light from the broad emission source such as a deuterium lamp is collimated by an achromatic lens system so that the total light passes through the detector cell onto a holographic grating.
The Agilent 1100 Diode Array Detector verifies separation quality with peak purity, multiple signals, and spectral libraries during your analytical quantification, offering an extended wavelength range with the highest sensitivity The VWD and diode array detectors allow for automated wavelength verification for performance tracking. 1290 Infinity II Diode Array Detector Overview Video 1290 Infinity Diode Array Detector Overview Video 1290 Infinity Diode Array Detector. Photodiode array detectors—variously abbreviated as “PDA detectors” or simply “DADs”—are essentially spectrophotometers that transiently measure the absorbance of light by a liquid flowing past They are the dominant detector type used in applications such as liquid chromatography (LC) to yield information about the identity, quantity, and purity of sample separations as they exit.

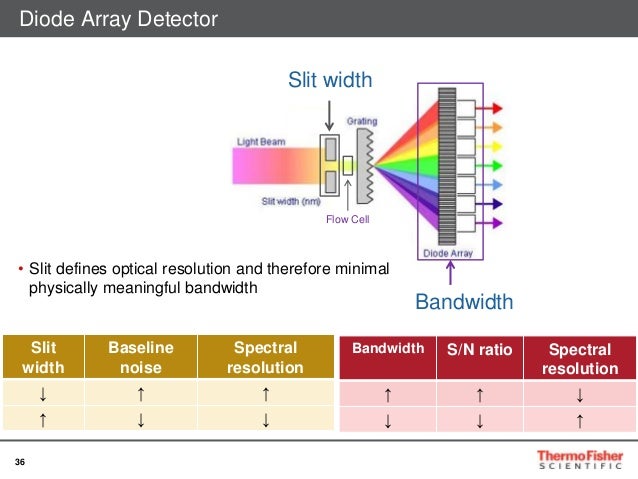

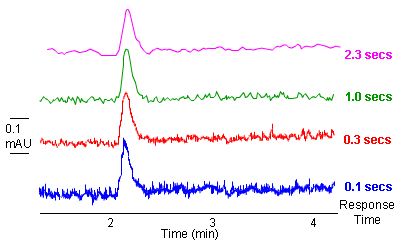

When a specific wavelength is set on an diode array detector (DAD), the total number of wavelengths actually registered by the photodiode is refered to as the bandwidth For example, a wavelength set at 254 nm with a bandwidth of 4 nm (254/4 nm) results in average absorption of nm The selection of the bandwidth is a balance between sensitivity and selectivity. 1290 Infinity II Diode Array Detector Overview Video 1290 Infinity Diode Array Detector Overview Video 1290 Infinity Diode Array Detector. Diode Array Detector (DAD) provides you with an unmatched detection experience This DAD achieves the best signaltonoise performance through the combination of lowest baseline noise, a very long light path, and minimum peak dispersion The ultrawide dynamic range of the detector is ideal for simultaneous detection of highly.
Choose the Thermo Scientific UltiMate 3000 Diode Array Detector Flow Cell with the desired flow rate Flow cells are available in analytical, semiprep and semimicro flow rates Popular. One additional advantage that stems from the small size of photodiodes is the ability to arrange multiple detectors into an array, known as a photodiode array (PDA) These arrays can take any shape and contain any number of detector elements, but are often arranged in a linear fashion, enabling the detection and encoding of spatial data as well as the energy and intensity of the incident light. The photo diode array (PDA), also known as the diode array detector (DAD) can measure the entire wavelength range in real time, which may provide other advantages Figure 1 provides an example from the analysis of cannabinoids by spectral absorbance profile which can be utilized as a second form of analyte confirmation.

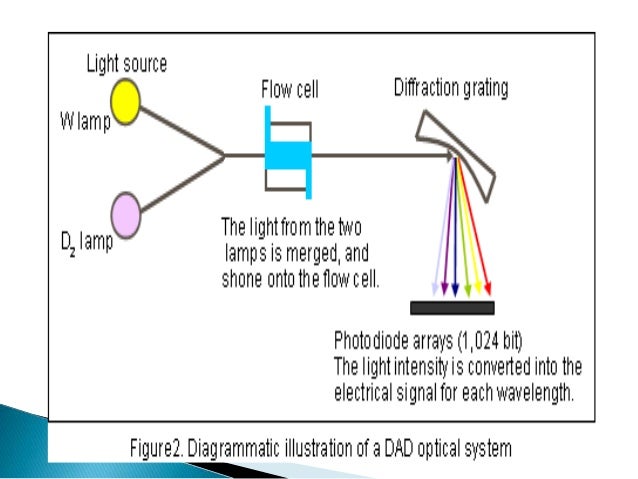

A typical photodiode array with 1024 elements is shown in Figure 2 In simple terms, the emergent light from the flow cell can be split into 1024 separate parts, and in typical HPLC UV applications, this will mean that each diode will be able to measure light over a range. This refurbished Hitachi LaChrom ULTRA L2455U Diode Array Detector is in great condition It has been tested at SpectraLab Scientific A 90 day warranty is included We are seasoned professionals in this area and we would be happy to have you speak with one of our experts here at SpectraLab Thanks for looking and we look forward to hearing from you!. Dionex PD40 (PD40) Photo Diode Array Detector (PDA / DAD) This PDA is also available as part of a complete Dionex DX500 or DX600 system Hitachi L4500A Diode Array Detector With D600 Interface Price Please Inquire Condition Used Used Hitachi L4500A Diode Array Detector With D600 Interface for sale.
Silicon or Diamond Diode A silicon semiconductor or synthetic diamond detector consists of a layered silicon disk with contact wires to the measuring instrument This is embedded horizon tally or vertically in protective and / or buildup mate rial depending on the intended application to form a useful probe. This study provided a stepbystep procedure to investigate the distribution of 17 amino acids (AAs) in 50 fish, 50 bovine and 54 porcine gelatines using UltraHighPerformance Liquid Chromatography DiodeArray Detector (UHPLC–DAD) with the incorporation of principal component analysis (PCA) Dataset preprocessing step, including outlier removal, analysis of variance (ANOVA), dataset. When a specific wavelength is set on an diode array detector (DAD), the total number of wavelengths actually registered by the photodiode is refered to as the bandwidth For example, a wavelength set at 254 nm with a bandwidth of 4 nm (254/4 nm) results in average absorption of nm The selection of the bandwidth is a balance between sensitivity and selectivity.
Infrared detectors InGaAs photodiode arrays InGaAs linear arrays and segmentedtype photodiodes Menu Product overview Related documents Save to wishlist Linear InGaAs photodiode arrays Onedimensional linear arrays with equally spaced photosensors Sensitive to nearinfrared wavelengths Segmented InGaAs photodiodes. A Photodiode Array Detector is a microprocessor controlled multichannel detector that permits simultaneous access to spectral data for several wavelengths simultaneously In comparison the conventional UVVisible detector has only a single channel detector. 1290 Infinity II Diode Array Detector Overview Video 1290 Infinity Diode Array Detector Overview Video 1290 Infinity Diode Array Detector.
Flexibility and performance combined Thermo Scientific™Vanquish Diode Array Detectors (DADs) and Multiple Wavelength Detectors (MWDs) are designed for highest performance, reliability and flexibility Our detectors offer excellent linearity and optimized noise performance. A Diode Array Detector (DAD) can add a lot of useful information in addition to the electropherogram It creates spectra during the runs These spectra be used to identify the peak, provided that a spectrum is available in the spectrum library It is also very useful as a tool to determine peak purity. For small ranges of position, a simple balanced detector consisting of two diodes could be sufficient, but a long photodiode array allows for position measurements in a much larger range By scanning the “viewing direction” of a onedimensional array, one may acquire twodimensional images – possibly with a speed which is higher than when using twodimensional CMOS sensors, for example.
Synthetic Diamond Diode Detector A Schottky diode develops below the top metal contact The incident radiation generates positive and negative charge carriers These are separated by the field of the diode, thereby producing a signal current that can be measured with an electrometer Like the silicon semiconductors, no external bias voltage is required. Diode Array Detector (DAD), also known as Photodiode Array (PDA) Detector Analyte must contain a chromophore Acquire UVVis spectra in multiple channels and a 3D spectra over a wide dynamic range. The Agilent 1100 Diode Array Detector verifies separation quality with peak purity, multiple signals, and spectral libraries during your analytical quantification, offering an extended wavelength range with the highest sensitivity The VWD and diode array detectors allow for automated wavelength verification for performance tracking.
