Profibus Pa

PROFIBUS PA is used to monitor and control equipment in process automation applications PROFIBUS PA uses the same protocol as PROFIBUS DP, and can be linked to a PROFIBUS DP network using a coupler device.

Profibus pa. ProfiBus PA I read in the PROFIBUS PA specifications that the max length of EACH spur is 30/60/1 m, but with PROFIBUS DP we have defined the spur length parameter as TOTAL spur length. Today PROFIBUS DP still has a large installed base of PROFIBUS devices in the manufacturing industry – and PROFIBUS PA dominates the process industry Over 60 million installed nodes With over 60 million nodes installed worldwide, PROFIBUS is the leading fieldbus for consistent, endtoend communication from the cell level to the field level. Profibus DP is designed for highspeed data communication at the device level The central controllers (for example, PLCs / PCs) communicate with their distributed field devices (I / O’s), drives (drivers), valves, etc, via a highspeed serial link Most of this data communication with the distributed devices is carried out cyclically.

The similarity of PROFIBUS DP and PROFIBUS PA inspired PepperlFuchs developers to create transparent segment couplers Segment couplers are configuration free and transparent The segment coupler will “display” all devices connected to the PA network as if they were DP field devices The communication speed on the PA side is independent of the DP side. ProfibusPA was designed as a substitute for HART and 4 to mA signal transmission in the process industries It uses function blocks designed around process industry requirements and uses the IEC 6115 physical layer, making it compatible with intrinsic safety circuits. Our Bulletin 17 Redundant EtherNet/IP™ to ProfibusPA Linking Device provides a fast and integrated solution for adding ProfibusPA field devices to any Logix platform These linking devices provide a direct link between ProfibusPA and EtherNet/IP without requiring an intermediate ProfibusDP layer.

PROFIBUS PA, which permits both digital data transmission and the power supply on a twowire line with the intrinsicallysafe MBP transmission technology (Manchester Coded;. PROFIBUSPA IP67 junction box, 4channel Ident no Junction box for wall mounting with PVC cable glands M x 15;. PROFIBUS is an open, vendorindependent protocol that became part of the international standard IEC in 00 Over time, it has been extended into new application areas by working groups of employees from companies that have similar products and target application areas.

The PROFIBUS PA allows all the field data to travel on the same pair of cables It also keeps the devices looppowered, to reduce currents that could set off explosions You can check out SMT70 in our shop that supports PROFIBUS SMT70 is a tablet PC designed as a complete solution that comes with preinstalled driver libraries. The PROFIBUS PA allows all the field data to travel on the same pair of cables It also keeps the devices looppowered, to reduce currents that could set off explosions You can check out SMT70 in our shop that supports PROFIBUS SMT70 is a tablet PC designed as a complete solution that comes with preinstalled driver libraries. Profibus Cable Downtime in industrial applications is extremely costly Belden’s Profibus Cables ensure maximum protection and performance Get application flexibility in a variety of tough applications, including outdoors and in areas where multiple cable runs are required.

The PROFIBUSPA is the PROFIBUS solution that meets the requirements for process automation by connecting automation and process control systems with field equipment process control, such as pressure and temperature transmitters, converters, positioners, etc It can be used as a substitute for the 4 to mA standard. PROFIBUS PA, which permits both digital data transmission and the power supply on a twowire line with the intrinsicallysafe MBP transmission technology (Manchester Coded;. PROFIBUS PA – topology System integration with PROFIBUSPA is implemented via a DP/PA segment coupler originating from the PROFIBUS DP fi eldbus The segment coupler adapts the RS485 transmission physics to the transmission physics determined in IEC 6115 If the DP segment operates with a higher speed, an additional link is required.

PROFIBUS PA for process automation Process solutions with PROFIBUS from Phoenix Contact We offer a triedandtested solution for process automation It requires little space and offers many options for increasing reliability even further, giving you a decisive advantage when it comes to stateoftheart process automation projects. Profibus PA Beck is pleased to announce the certification of its Profibus PA Digital Control Module (DCM), and associated EDD and GSD files The most popular fieldbus in the world according to Profibus International statistics is now available as a Beck actuator interface option. Select the modules required from the available module list, give the slave a unique ProfibusDP address.

Product description Profibus PA Cable, 18/1AWG, Fixed Installation, SWA / PVC, UV Stable. The isNet DiagM PA is a stationary PROFIBUS PA diagnostic and master module Together with the head module isNet Lite, gateways can be built, that provide direct access from Ethernet to PROFIBUS PA devices without a DP/PA segment coupler. PROFIBUS is the fieldbus for machines and systems that has been established for years Based on serial bus technology, it revolutionized the automation world in the 1980s and created the basis for decentralized concepts for the first time.

PROFIBUSPA is one of three PROFIBUS variants that are compatible with each other PROFIBUS is a vendorindependent, open bus system which was standardized in the German DIN 19 245 In March 1996, this standard was embedded into the European standard EN Volume 2 without modifi cations. PROFIBUS PA is a protocol designed for Process Automation In actuality, PROFIBUS PA is a type of PROFIBUS DP Application profile PROFIBUS PA standardizes the process of transmitting measured data It does hold a very important unique characteristic, though. PROFIBUS PA (Process Automation) is used to monitor measuring equipment via a process control system in process automation applications This variant is designed for use in explosion/hazardous areas (Exzone 0 and 1) The Physical Layer (ie the cable) conforms to IEC 6115, which allows power to be delivered over the bus to field.

PA is short for Process Automation ProfibusPA allows you to remove this I/O unit and also the cables and replace them with a segment coupler and a single ProfibusPA cable With the new setup, instead of connecting the sensors to the I/Os one by one, you can connect all of them to a single ProfibusPA bus. Bus Powered) is tailored to these requirements. ProfiBus sends Broadcast and MultiCast messages as global control telegrams using address 127 and an optional group number for a targeted group of slaves Because ProfiBus uses a cyclic (periodic) polling mechanism between masters and slaves, it is also deterministic That is, the behavior of a ProfiBus system can be reliably predicted over time.

Bus Powered) is tailored to these requirements. PROFIBUS PA (Process Automation) is used to monitor measuring equipment via a process control system This Profibus variant is ideal for use in explosive areas (Exzone 0 and 1) In the cables flows namely a weak current through the bus lines in an intrinsically safe circuit so that sparks do not occur, even at fault. The ComBricks PROFIBUS PA monitoring kit is ideal for use behind existing 3rd party DP/PA couplers to provide 24/7 monitoring of PROFIBUS PA segments With the ProfiTrace OE built into the ComBricks Head Station, and the oscilloscope in the PA module, this is extremely powerful proactive tool for remote maintenance over Ethernet.

PROFIBUS PA is a fieldbus according to IEC 6115 and supplies power and transmits communication digitally between host systems such as the DCS or a PLC and field instrumentation Status information and control commands are transmitted digitally between the master and up to 31 participants connected to the same cable. Profibus PA Beck is pleased to announce the certification of its Profibus PA Digital Control Module (DCM), and associated EDD and GSD files The most popular fieldbus in the world according to Profibus International statistics is now available as a Beck actuator interface option. Product description Profibus PA Cable, 18/1AWG, Fixed Installation, SWA / PVC, UV Stable.

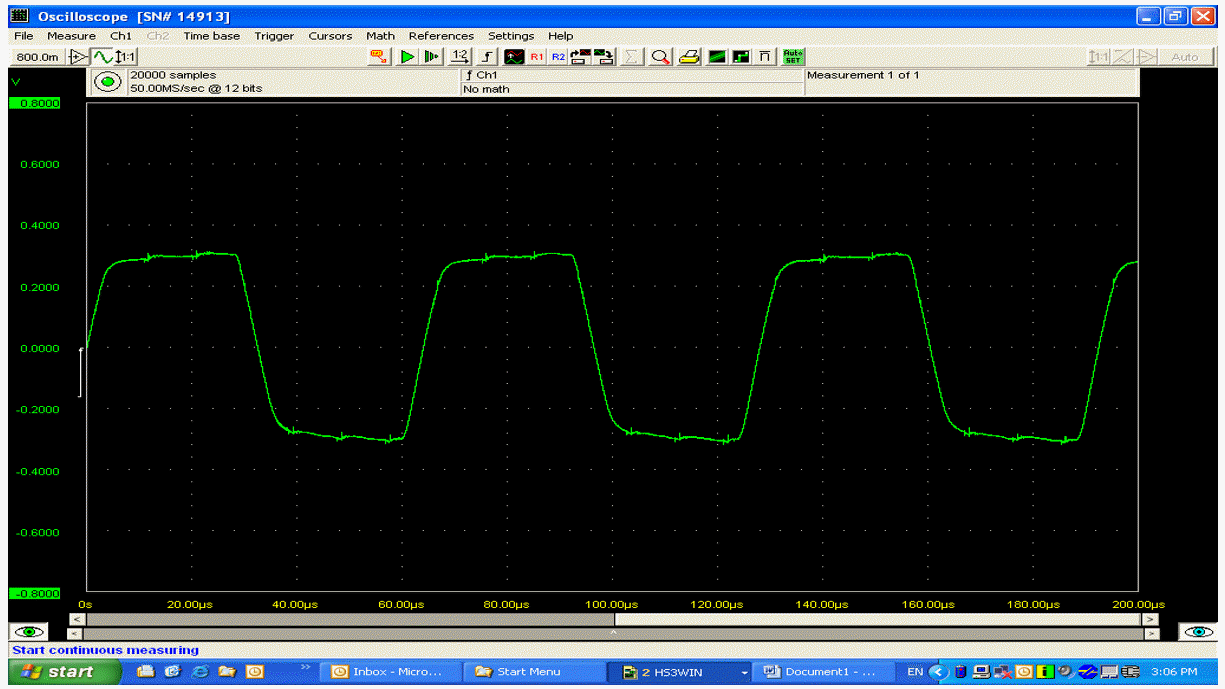

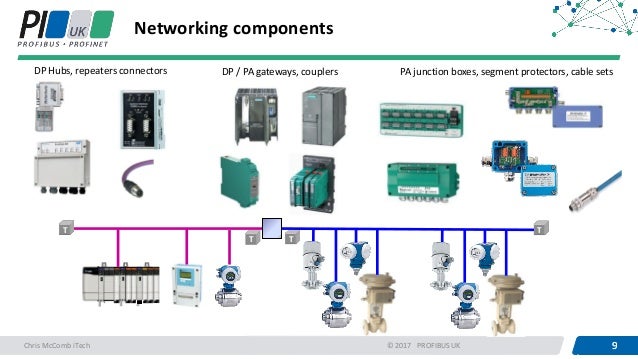

PROFIBUS PA is a variant of PROFIBUS DP that is specially designed for improvement and replacement of conventional systems such as 4 mA and HART in process automation In contrast to PROFIBUS DP, data and power supply are transported over the same two wires and there is an explosion proof option available. PROFIBUS PA (PA Process automation) is used in process control applications It connects to PLC by ProfibusDP through a segment coupler as shown in the figure below PROFIBUSPA devices are not directly accessible by PROFIBUS master, the segment coupler allows intrinsic connection to electrically isolate PA devices from DP network. To setup your PA slaves with a coupler, treat them as you would DP slaves integrate the PA gsd file in your Profibus configurator (Step 7's HWConfig, here) and insert the "DP" slave now inserted in the catalog directly on the bus;.

The similarity of PROFIBUS DP and PROFIBUS PA inspired PepperlFuchs developers to create transparent segment couplers Segment couplers are configuration free and transparent The segment coupler will “display” all devices connected to the PA network as if they were DP field devices The communication speed on the PA side is independent of the DP side. PROFIBUS PA uses twisted shielded pairs for both power and communication Its physical network structure complies with IEC6115 and the data rate on the network is 3125kbit/s Actually, it’s pretty much the same as FOUNDATION Fieldbus H1 – both are based on the same standard. PROFIBUSPA Basics PROFIBUSPA – bus physics With the publication of the international standard IEC 6115 in October 1994, a suitable transmission technology was determined and internationally specifi ed for the application areas of PROFIBUSPA and FOUNDATION fi eldbus™ This was later integrated into the European standards as EN 6115.

Bus Powered) is tailored to these requirements. PROFIBUS PA is a protocol designed for Process Automation In actuality, PROFIBUS PA is a type of PROFIBUS DP Application profile PROFIBUS PA standardizes the process of transmitting measured data It does hold a very important unique characteristic, though. P ROFIBUS PA is a slowlytransitioning, lowvolume data network for Process Automation, based on Manchesterencoded BusPowered for Intrinsic Safety (MBPIS) The rate of data change is within the range of tensofmilliseconds to multiple seconds A PROFIBUS PA network operates over a single cable that provides power and communication.

PROFIBUS PA It is slower than PROFIBUS DP and runs at fixed speed of 312Kbps via blue sheathed two core screened cable The communication may be initiated to minimise the risk of explosion or for the systems that intrinsically need safe equipment The message formats in PROFIBUS PA are identical to PROFIBUS DP. PROFIBUS PA (Process Automation) is used to monitor measuring equipment via a process control system in process automation applications This variant is designed for use in explosion/hazardous areas (Exzone 0 and 1). PROFIBUS has been established as the leading fieldbus for machines and plants for more than 25 years Based on serial bus technology, it revolutionized the automation world in the 90s and, for the first time, created the basis for distributed concepts – and Siemens was there right from the start Slide 1 of 1 Slide 1 of 1.

PROFIBUS PA, which permits both digital data transmission and the power supply on a twowire cable with the intrinsicallysafe MBP transmission system (Manchester Coded;. PROFIBUS PA is used in process automation The physical layer of PROFIBUS PA is Manchester Encoded Bus Powered (MBP), and the physical layer for PROFIBUS DP is RS485 Even though a different physical layer is employed, PROFIBUS PA is the same protocol as PROFIBUS DP PROFIBUS DP and PA are widely used in industrial automation. PROFINET to PROFIBUS DP/PA Master Gateway Direct Integration of PROFIBUS DP and PA Segments into PROFINET Control Systems With pnGate PB it is possible to integrate up to 2 PROFIBUS PA segments and 1 PROFIBUS DP segment into PROFINET systems using virtual mapping.

Profibus® is a leading international network protocol for high speed data communications in industrial automation and control The Rotork Profibus® DP interface card provides comprehensive control and feedback data about the valve and actuator using DPV0 cyclic communications whilst extended actuator diagnostics and configuration is included in the DPV1 acyclic data supported by this module. Products Fieldbus Technology Foundation Fieldbus and PROFIBUSPA Foundation Fieldbus and PROFIBUSPA Turck has the full range of solutions for process automation tasks implemented with FOUNDATION fieldbus and PROFIBUSPA The portfolio includes power supplies, power conditioners, multibarriers as well as junction boxes more. Integrated terminating resistor (activatable).

PROFIBUS PA (Process Automation) is used to monitor measuring equipment via a process control system This Profibus variant is ideal for use in explosive areas (Exzone 0 and 1) In the cables flows namely a weak current through the bus lines in an intrinsically safe circuit so that sparks do not occur, even at fault. PROFIBUS PA uses twisted shielded pairs for both power and communication Its physical network structure complies with IEC6115 and the data rate on the network is 3125kbit/s Actually, it’s pretty much the same as FOUNDATION Fieldbus H1 – both are based on the same standard. Analog Input ProfibusDP Modules Multichannel units with flexible I/O ranges These units provide an isolated network interface for voltage, current and temperature sensor signals or for nonnetworked controller signals Highresolutions, low noise, A/D converters deliver high accuracy and reliability Analog Output ProfibusDP Modules Control up to 6 devices with a single unit The units.

PROFIBUS PA It is slower than PROFIBUS DP and runs at fixed speed of 312Kbps via blue sheathed two core screened cable The communication may be initiated to minimise the risk of explosion or for the systems that intrinsically need safe equipment The message formats in PROFIBUS PA are identical to PROFIBUS DP. There are many benefits to selecting our MOBIPA HART and Profibus PA modem including the outstanding quality and the costeffective price Our modem for HART and Profibus PA applications provides you with the versatility you need and they are also safe for use in hazardous areas Other benefits of the MOBIPA HART and Profibus PA modem include. PROFIBUSPA is one of three PROFIBUS variants that are compatible with each other PROFIBUS is a vendorindependent, open bus system which was standardized in the German DIN 19 245 In March 1996, this standard was embedded into the European standard EN Volume 2 without modifi cations.
