The front panel audio header on an Intel® Desktop Board lets you connect to a front panel audio module built into a system chassis See the header pinout configuration below for connecting a chassis with Intel® High Definition Audio (Intel® HD Audio) or AC'97 (Audio Codec '97) audio.

Front panel connectors motherboard. Hi folks, So, Im planning on upgrading my cpumoboram combo I currently have a MicroATX Asus B85MG which has a 101 FPANEL connector, which works great with my Cooler Master K350 case, which has the same cable installed Ive been looking at AM4 mobos for a R5 3600 I wanted to stay at Asus as. I have the S340 Elite Great case but the front panel connector cables especially the USB 30 are a bit difficult The USB one is so rigid and the header is at the very bottom of my motherboard that I can barely fit it onto the motherboard and have it managed properly So Im wondering if there ar. Here are the computer connections we need to plug in Use this header if your chassis provides only a 3 pin connector to the front power leds The plugs on the wires have a ksp on one wire but nothing on the other Sata connections these are 4 of the 6 sata connections on the motherboard.

3 Connect Front Panel Connectors to Motherboard In order for the power button, reset button, front USB ports, front audio ports and LED lights of the computer case to work, you will need to plug their front panel connectors into the front panel header on the motherboard. M2 connector 7 SATA ports 8 Front panel connectors 9 USB 2 header 10 USB 31 Gen1 header Above we’ve illustrated many of the common motherboard port and connector types Of course. CY USB 30 HUB 4 Ports Front Panel to Motherboard Pin Connector Cable for 525" CDROM Bay 50 out of 5 stars 1 $22 $ 22 FREE Shipping on orders over $25 shipped by Amazon In stock on January 27, 21 ESDS USB 30 4Ports 35 inch Metal Front Panel USB Hub with 15 Pin SATA Power Connector Pin Connector & 2ft Adapter Cable.

Figure 15 Front panel connectors from the motherboard Figure 16 Wires from the case’s front panel You will find the following wires Reset switch (no polarity required). Hi I am doing a PC build and there is some leads on the front panel that I am not sure of where they may or may not go on my motherboard , they are labled as follows 1 LRet 1pin 2 RRet 1pin 3 ROut 1pin 4 LOut 1pin 5 Mic Power 1pin 6 MicIn 1pin The connections I have left on. Lauren K May 16, 19 55;.

The proprietary one piece connector from the lenovo only fits on the motherboard Although the front panel connectors from the new atx case are the regular pwrswitch hdd led hdd led etc and do not power on the system. The all in one connector is used so you don't have to painstakingly plug each individual connector onto the motherboard pins one at a time You are supposed to just be able to plug the front panel wires into the allinone connector, then just put that on the motherboard pins. You may connect the lenovo front panel into a generic motherboard using only the pins 3 to 12 Just leave the pins 1 and 2 disconected The pins 1, 2, 9 and 10 are connected to the cable shield It will work fine Standard internal USB connector for front panels.

In the past days, users always have difficulty connecting the front panel due to a lack of standard location on the motherboard Today, AOpen integrated all these disorder but essential front panel connectors into one pin connector for easy usage. Follow In order for our cases to be used with certain AMD and smaller manufacturer's motherboards, we have a breakout adapter cable that will detach the Intel Fpanel port pin convention into separate pins. But my motherboard has an irregular front panel connector!.

I am about to connect the front panel wires The motherboard diagram indicates where to put each wire but it shows a and a connection The plug on the wires does not show a or The plugs on the wires have a KSP on one wire but nothing on the other As gx says, the Motherboard PinOut Connectors are the Key. The Intel Front Panel Connectivity Guide recommends the following design for a pair of front panel USB connectors If your motherboard is a recent design, it’s likely it will be identical, or at least similar The Wiring column indicates how the system case wiring illustrated above would be connected. EZDIYFAB 2Port US0 Type A and US1 Type C GEN 235 inch Front Panel USB Hub pin Connector 73 cm Cable Metal Front Panel USB Hub, US1 Extender 10 Gbps High Speed Data Transfer 42 out of 5 stars 28.

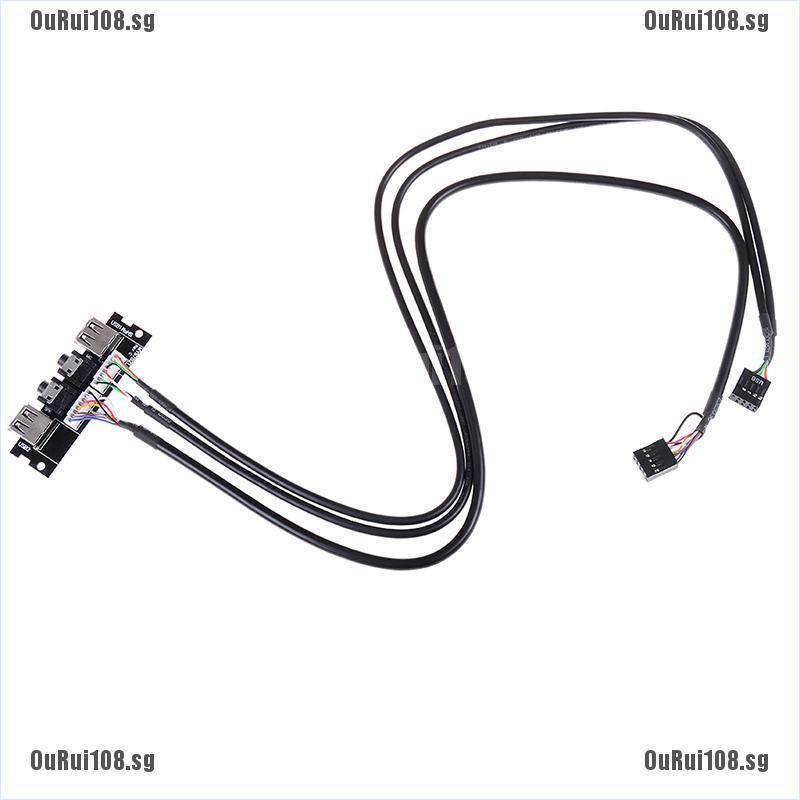

Support USB motherboards The audio has 8 HD high fidelity lines, and the line length is 600MM 1Pc computer front panel usb audio port cable motherboard connection cabl TM!. The motherboard User’s Manual will contain a layout diagram showing its various components and connectors In this case, the pin header for electrical connection to the front panel switches and LEDs is identified as J2 This comprises two rows of up to 11 pins The jumper definition is shown in the following table Switch Jumper. Installing the Front Panel Connectors We're almost finished!.

The mobo is a Gigabyte G8LMTUS, and the case is an OEM compaq case that I'm reusing The front panel pin is this 17pin thing and idk how to plug in my cable. The new mobo arrived just now, but the Lenovo case has a unique front panel header connector in a single block I'm pretty sure I can plug this on to the ASRock motherboard in such a way that the power button works, but I'm sure the HDD indicator would not work but this is not so much a problem. Say hello to your front panel cables US (far left), front panel (centre left), speaker (centre right) and USB2 (far right) If you’d rather not have bits blinking away at you in the darkness, then by all means leave the LED connectors out But you will need to connect the power and reset buttons at the very least.

One somewhat tedious but vital step whenever you assemble a computer is to connect all those little wires for the frontpanel switches, system speaker, USB ports, and indicator LED's from the case to the motherboard. 18 Motherboard Pin Definition 8 Front panel audio connector (101 pin AAFP) This connector is for a chassismounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard Connect one end of the front panel audio I/O module cable to this connector AAFP PIN 1 AGND NC SENSE1_RETUR SENSE2_RETUR. ASUS TUF Gaming H470PRO WiFi 6 LGA10 (Intel 10th Gen) ATX Gaming Motherboard (WiFi 6, Intel 1Gb LAN, Front Panel TypeC Connector, Addressable Gen 2 RGB Header and Aura Sync) 45 out of 5 stars 64 $ $ 152 13.

Intel® Desktop Boards also include an alternate front panel power/sleep LED header Use this header if your chassis provides only a 3pin connector to the front power LEDs Pin assignments Pin Signal Name Description 1 POWER_LED_MAIN Out Front panel LED (main color) 2 Key (no pin) 3. You may connect the lenovo front panel into a generic motherboard using only the pins 3 to 12 Just leave the pins 1 and 2 disconected The pins 1, 2, 9 and 10 are connected to the cable shield It will work fine Standard internal USB connector for front panels. I searched the forum but didn't find a definitive answer There are multiple wires coming from the front panel but no indication of polarity on their connectors One side of the connector has an arrow on it but is that or ?.

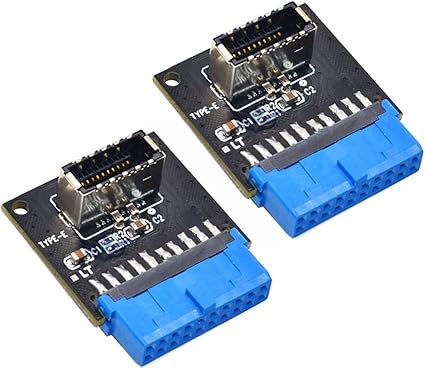

CY USB 30 HUB 4 Ports Front Panel to Motherboard Pin Connector Cable for 525" CDROM Bay 50 out of 5 stars 1 $22 $ 22 FREE Shipping on orders over $25 shipped by Amazon In stock on January 27, 21 ESDS USB 30 4Ports 35 inch Metal Front Panel USB Hub with 15 Pin SATA Power Connector Pin Connector & 2ft Adapter Cable. My H500 I/O Front Panel Connectors Do Not Fit Into My Motherboard Am I Missing Something?. Asus Prime X299 Edition 30 ATX Motherboard (Intel X299) LGA 66, DDR4 4266 MHz, WiFi 6, 5 Gbps Ethernet, TypeC Thunderbolt 3 Ports, Triple M2, USB 32 FrontPanel Connector & Aura Sync RGB 42 out of 5 stars 11.

Computer front panel connecting USB connectors and 35 mm When connecting plugs in the front panel of the computer, it is necessary to follow the same rules search the manual for a connection place and then connect the plugs Please note that not always there is a place to connect the front USB 30 connector on the motherboard. M2 connector 7 SATA ports 8 Front panel connectors 9 USB 2 header 10 USB 31 Gen1 header Above we’ve illustrated many of the common motherboard port and connector types Of course. Hi, So I assembled a new computer this morning but had problems with connecting my front panel connectors on the Gigabyte B450M DS3H Theres a white connector that came with the case Im using for this build but it doesnT fit on the motherboard Any clues on how to plug my connectors properly?.

Hi, HP doesn't publish a manual for the Orchid The front panel header is standard with the industry LEDs are polarity sensitive So if you don't get the connection right the first time then reverse the leads (corrector). A simple one yet a common asked question is how to connect front panel headers to your motherboard from your chassis This includes the usual power and reset. The mobo is a Gigabyte G8LMTUS, and the case is an OEM compaq case that I'm reusing The front panel pin is this 17pin thing and idk how to plug in my cable.

This is pretty much a universal standard layout Why case manufacturers in still don’t include a standard 10pin socket for this is a true mystery. Connect cables to internal connectors and headers on the motherboard, including IDE/SATA connectors, and front panel audio, USB, IEEE 1394 headers, etc 72 Attach the front panel module (differs depending on the case design, consisting of power indicator, hard drive activity indicator, speakers, reset switch, power switch, etc) from the case. Connections on an older Asus P5WDH Deluxe motherboard Audio front panel This tenpin connector links to the frontpanel headphone and microphone inputs The particular connector shown is an AC97.

Hi, So I assembled a new computer this morning but had problems with connecting my front panel connectors on the Gigabyte B450M DS3H Theres a white connector that came with the case Im using for this build but it doesnT fit on the motherboard Any clues on how to plug my connectors properly?. Installing the Front Panel Connectors We're almost finished!. One somewhat tedious but vital step whenever you assemble a computer is to connect all those little wires for the frontpanel switches, system speaker, USB ports, and indicator LED's from the case to the motherboard.

The front panel audio header on an Intel® Desktop Board lets you connect to a front panel audio module built into a system chassis See the header pinout configuration below for connecting a chassis with Intel® High Definition Audio (Intel® HD Audio) or AC'97 (Audio Codec '97) audio. Connect cables to internal connectors and headers on the motherboard, including IDE/SATA connectors, and front panel audio, USB, IEEE 1394 headers, etc 72 Attach the front panel module (differs depending on the case design, consisting of power indicator, hard drive activity indicator, speakers, reset switch, power switch, etc) from the case. How to connect front panel connectors to the motherboard Intel desktop boards also include an alternate front panel powersleep led header Do a search and if you are lucky you will find something for the I am about to connect the front panel wires Your motherboard manual will have a page that shows a detailed diagram of what goes where.

Alternatively referred to as the fpanel or front panel connector, the system panel connector or system panel header controls a computer power button, reset button, and LED'sThe System panel cables, as shown in the picture are two wire cables that are colorcoded to help identify where they connect to the motherboard system panel connector. For your reference the 34Pin Front Panel connector on the motherboard looks like this all i need to know is the following connections 1 Power Switch 2 Power LED 3 HDD LED the rest i can live without cheers, sohaib Message Edited by sohaibkh on 0635 PM. EZDIYFAB 2Port US0 Type A and US1 Type C GEN 235 inch Front Panel USB Hub pin Connector 73 cm Cable Metal Front Panel USB Hub, US1 Extender 10 Gbps High Speed Data Transfer 43 out of 5 stars 29.

Intel LGA 1151 ATX motherboard with AI Overclocking, quadGPU support, DDR4 4266 MHz, Dual M2, Intel Optane memory ready, SATA 6Gb/s, USB 31 Gen 2 TypeC and frontpanel connectors 41 out of 5 stars 12. AsRock K7S41GX Motherboard Front Panel Connectors Jump to Latest Follow Status Not open for further replies 1 4 of 4 Posts R RazorC · Registered Joined May 2, 10 · 2 Posts Discussion Starter • #1 • May 2, 10 Hello there!. I'm having a problem.

One post I read surmised the colored wire is positive;. Hi, So I assembled a new computer this morning but had problems with connecting my front panel connectors on the Gigabyte B450M DS3H Theres a white connector that came with the case Im using for this build but it doesnT fit on the motherboard Any clues on how to plug my connectors properly?. The motherboard User’s Manual will contain a layout diagram showing its various components and connectors In this case, the pin header for electrical connection to the front panel switches and LEDs is identified as J2 This comprises two rows of up to 11 pins.

But my motherboard has an irregular front panel connector!. I wonder if it's possible to use regular front panel connectors on that motherboard I bought this motherboard off of Ebay from a company This company had several Gateway motherboards. Asus Prime X299 Edition 30 ATX Motherboard (Intel X299) LGA 66, DDR4 4266 MHz, WiFi 6, 5 Gbps Ethernet, TypeC Thunderbolt 3 Ports, Triple M2, USB 32 FrontPanel Connector & Aura Sync RGB 41 out of 5 stars 10.

MSI HOWTO Install front panel connectors (JFP1) (109) Instalacion del Panel Frontal (346) It is important to remember that each motherboard is different, and it is important to look up the proper connections in the motherboard manual Figure 8 Connection schematic using a sample motherboard front panel connector BIOS – Basic Input. Hi, HP doesn't publish a manual for the Orchid The front panel header is standard with the industry LEDs are polarity sensitive So if you don't get the connection right the first time then reverse the leads (corrector). I cant figure out how to connect front panel connectors to my Asus Prime b250ma motherboard Im not sure which way and order I should connect them I checked the manual that came with the motherboard but it didnt help I already twisted one pin when forcing two connectors to the wrong place but.

Every motherboard has a series of front panel connector pins to power a chassis’ internal speaker, power and hard drive activity lights, and power and reset buttons.
